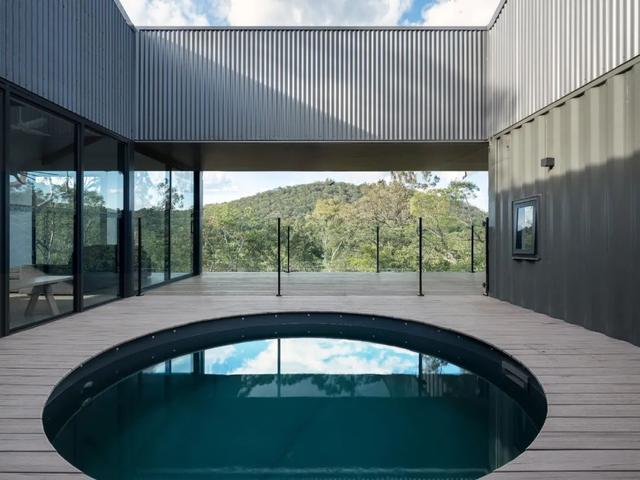

圆形游泳池 a circular pool ? Tom Ferguson

感谢 Benn & Penna 分享

与世隔绝的Colo Crossings房屋是由中心为圆形游泳池的航运集装箱组成。

The secluded Colo Crossings house is made of shipping containers encircling a circular pool.

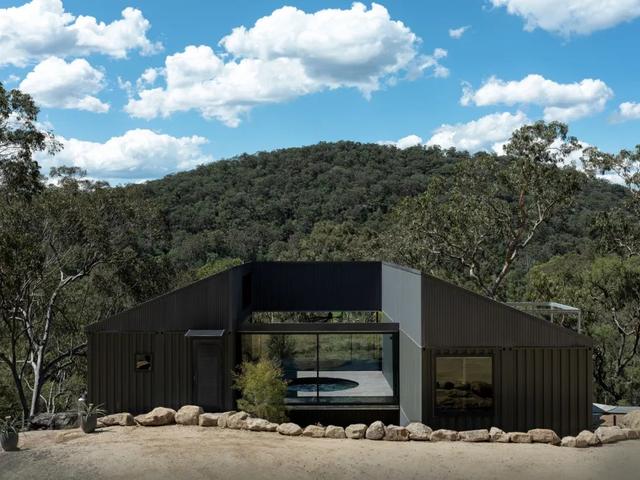

建筑周边环境 the surroundings ? Tom Ferguson

场地现存的砂岩和基岩被用来作为澳大利亚低洼地带住宅的天然地基。

Existing sandstone bedrock served as natural foundation for the low-lying Australian residence.

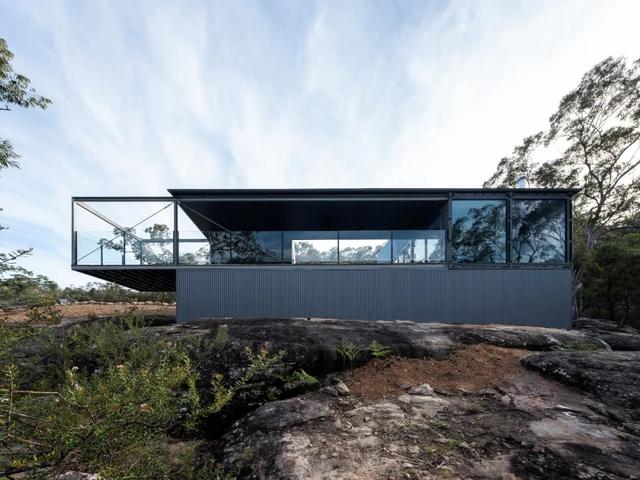

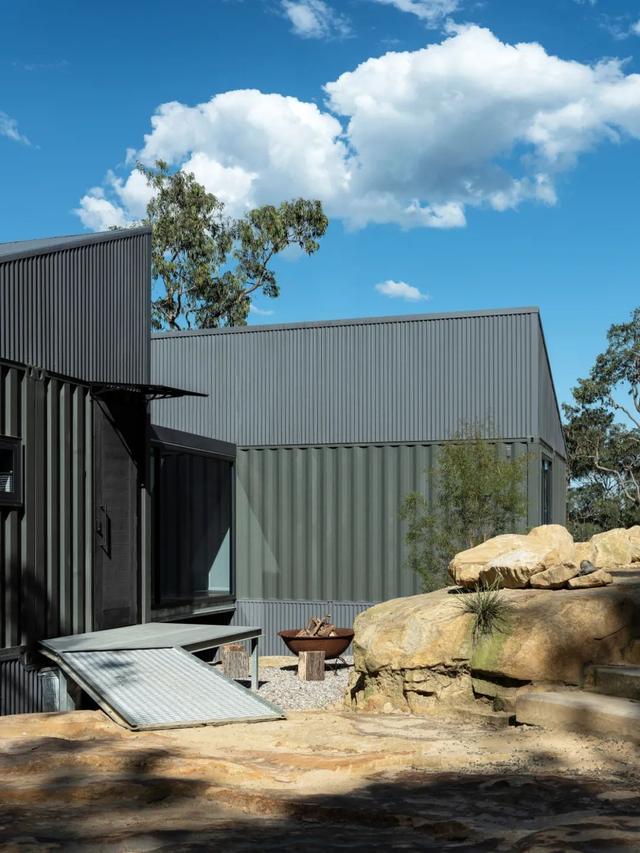

建筑墙体材料 the materials of wall ? Sean Tran

独特的金属屋顶和带肋的金属墙和谐地融入了崎岖的景观。

The distinct metal roof and ribbed metal walls settles harmoniously into the rugged landscape.

Colo Crossings在对退隐的追求中，将景观与住所相结合。私人住所位于悉尼中央商务区西北100公里处，坐落在科洛河上方的陡坡上，与居住者在乡村毫不费力地退离城市一起隐入其环境，克制而优雅地建在荒僻的环境中。“隔离”具有新的含义，作为对周围环境的献礼。

Colo Crossings intersects landscape and shelter in the pursuit of retreat. Located 100 kilometres north-west of Sydney’s CBD, and sitting atop a steep slope above the Colo River, the private abode recesses into its setting alongside its occupants' withdrawal from the city in a rural effortlessness, with containment and refinement perched atop an unforgiving landscape. ‘Isolation’ takes on a new meaning as a celebration of one's surroundings.

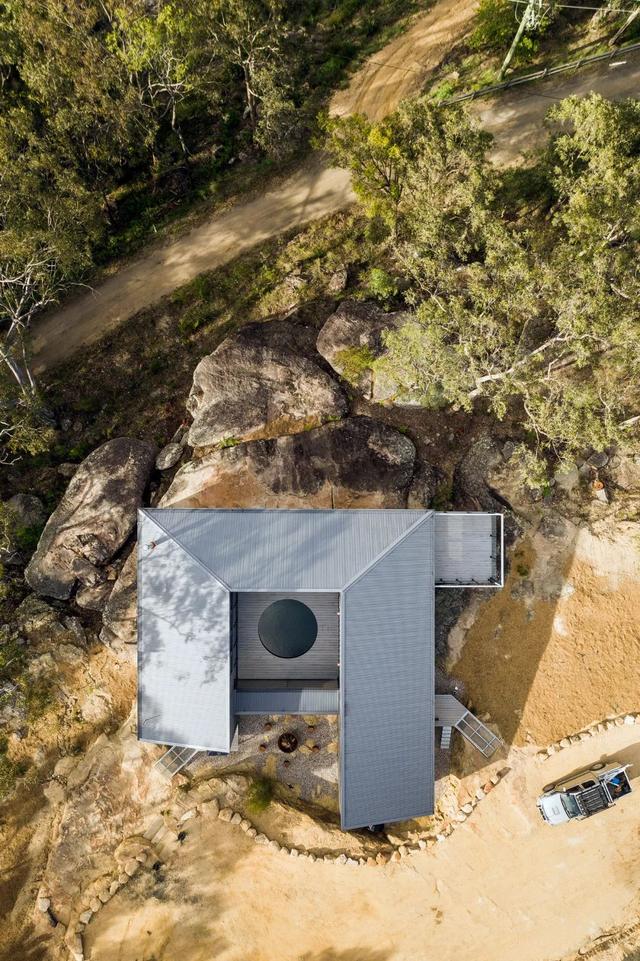

俯视图 the top view ? Tom Ferguson

这是一个由景观和建筑组成的 3D 结构，房屋被四面八方的灌木丛山包围，位于科洛河的一个弯道内。环形内部循环暗示了外部地形，允许居住者在经过的东西向太阳和暴露的元素旁边循环地穿过房子。U 形平面图，包括 3 间卧室、2 间浴室以及一个开放式厨房和客厅，进一步将其双臂环绕在居住者周围。水平形式采用三色调配色方案，使建筑进一步与景观融合：一个黑色的平台被固定在发黑的岩架上，接着是灌木绿的海运集装箱，在云层的反射作用下，顶上是银色的屋顶景观。

A 3-dimensional weave of landscape and building, the home is wrapped in bush laden mountains from all sides, within a bend in the Colo River. Looped internal circulation alludes to the external topography, allowing occupants to move cyclically through the house alongside the passing east-westerly sun and exposed elements. The u-shaped floor plan, containing 3 bedrooms, 2 bathrooms and an open plan kitchen and living room further wraps its arms around the occupant. The horizontal form utilises a tri-toned colour scheme, which assimilates the building further into the landscape: a black platform is anchored onto the blackened rock shelf, followed by bush green shipping containers, topped with a silvered roofscape under the reflective kinetics of the clouds.

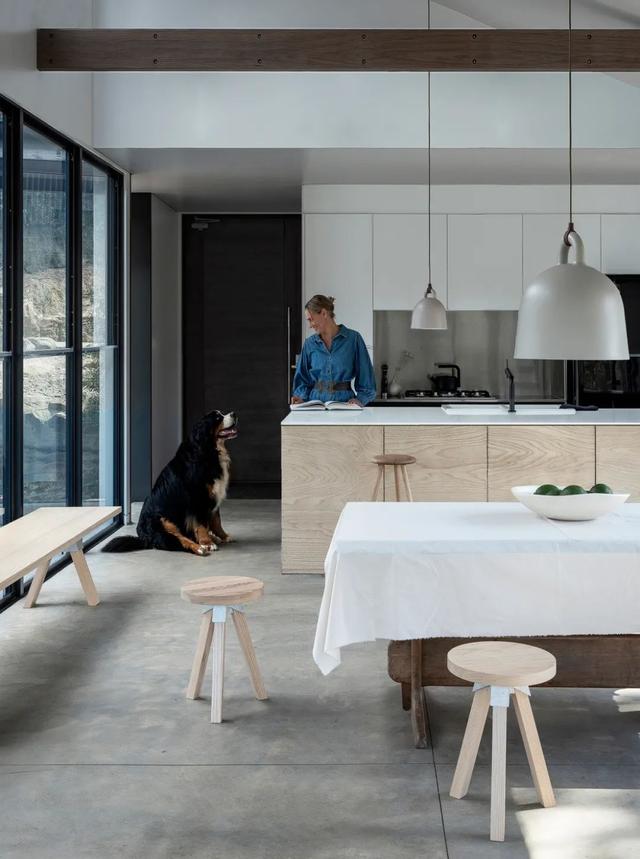

室内家具 the indoor furnitures ? Tom Ferguson

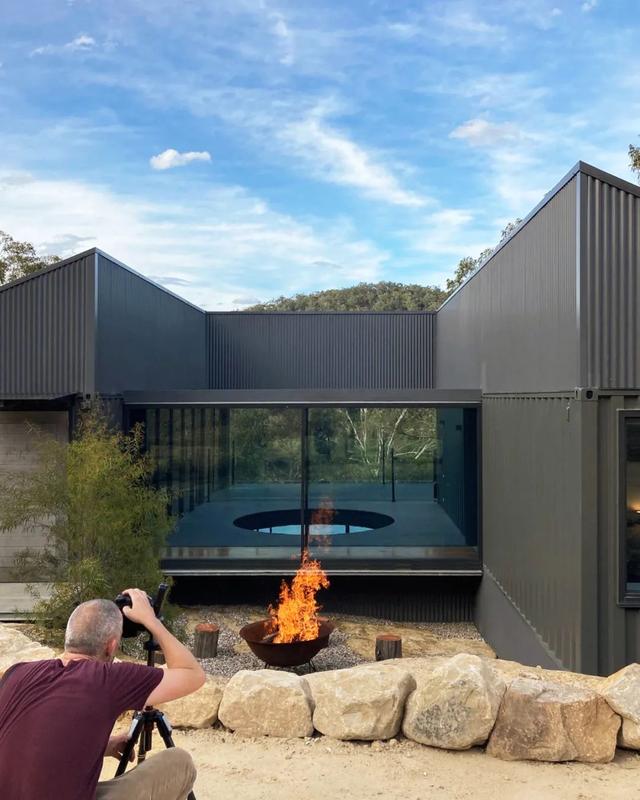

入口处景观 the entrance landscape ? Tom Ferguson

客户希望有一个隐居的地方，这一点通过探索来实现；人们可以径直穿越科洛河，也可以从景观中的环形小径的玻璃框架后面绕行。客户对避难所的要求延伸到探索；人们可以亲自穿越科洛河，也可以从景观中环形小径的玻璃框架后面穿越。Wheelbarrow的山脊曲线从水平视线上与中央体中的垂直方向并列。屋顶形式的特点是熟悉的臀部形状，在跳水池上方到达顶端，便于在崎岖地形中促进家庭的养育。从入口长廊看，房子是一个可供观赏的外围，玻璃中央人行道作为望远镜，可以看到即时性景观。

The clients’ brief for a place to retreat was extended towards exploration; one can traverse the Colo River physically, or from behind the glazed frames of looping trails in the landscape. Horizontal sightlines of the curve of Wheelbarrow Ridge beyond are juxtaposed with unsuspecting verticality in the central volume. The roof form is characterised by a familiar hipped shape which peaks above the plunge pool, facilitating domestic nurture amidst the rugged terrain. From the entry promenade, the house is a periphery for viewing, the glazed central walkway serving as a telescope which foregrounds the immediacy of the landscape.

外部环境 the outside environments ? Tom Ferguson

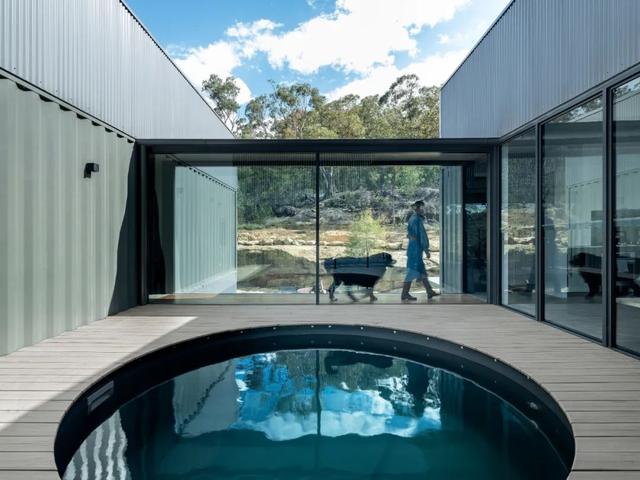

中心圆形游泳池 the central circular pool ? Tom Ferguson

预算考虑和与顾问的合作被用作支持机智和撤退理念的机会。现成的容器和罐，以及暴露的结构构件，有助于提高施工效率。现有的砂岩基岩形成了一个天然的基础，岩土和结构工程师与之合作，在一个容易发生山体滑坡的地区支撑建筑物。钢结构锚固在岩石中，外露构件作为结构的表达；旨在承受未来几年的环境。在内部，混凝土地板和胶合板厨房向原始、未经破坏的环境致敬。运输集装箱的墙壁和屋顶在该地区的高昼夜范围内双重绝缘，以抵御该地区的高昼夜温差，并在每个集装箱内浇筑了新的混凝土板，以便通过多个朝北的窗户促进热质量，此外还有光伏发电的板内加热。

Budget considerations and collaborations with consultants were used as opportunities to support the philosophy of resourcefulness and retreat. Ready-made containers and tanks, and exposed structural members, facilitated efficiencies in construction. The existing sandstone bedrock formed a natural footing which the geotechnical and structural engineers worked with to support the building in an area prone to landslides. The steel structure anchors into the rock, with exposed members as an expression of the structure; designed to withstand its context for years to come. Internally, concrete flooring and a plywood kitchen nod towards the raw, untampered surrounds. The shipping container walls and the roof are double insulated against the high diurnal range of the area, and a new concrete slab was poured into each container to facilitate thermal mass through multiple north-facing windows, in addition to photovoltaic powered in-slab heating.

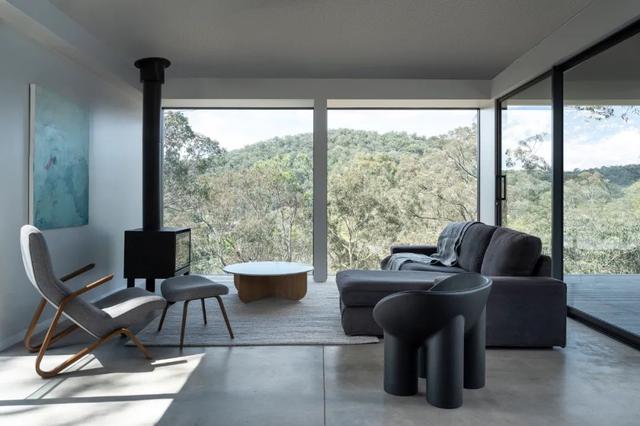

起居室 the living room ? Tom Ferguson

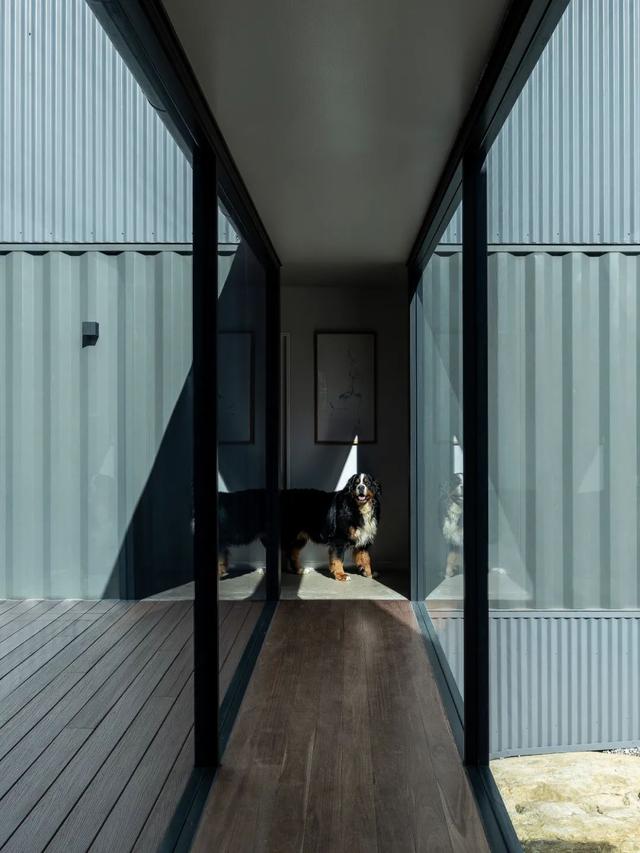

走廊 the corridor ? Tom Ferguson

科洛河的乡村环境和丛林火灾法规要求设计与它的地方不同，包括自我收集和对水的责任。尖顶屋顶和水箱收集水以供饮用，而中央水池则在发生火灾时提供保护。静静依偎的形式与其崎岖的环境保持着不断的平衡和对立；暗示可能在任何时候安静地下降或防御火焰。

The rural setting and bushfire regulations of Colo River mandate design which is idiosyncratic to its place, including self collection and accountability for water. The peaked roof and water tanks collect water for consumption, whilst the central pool provides protection in the event of a fire. The quietly nestled form is in constant balance and antithesis with its rugged context; insinuating the potential for a quiet dip or defence against blaze at any point.

项目图纸

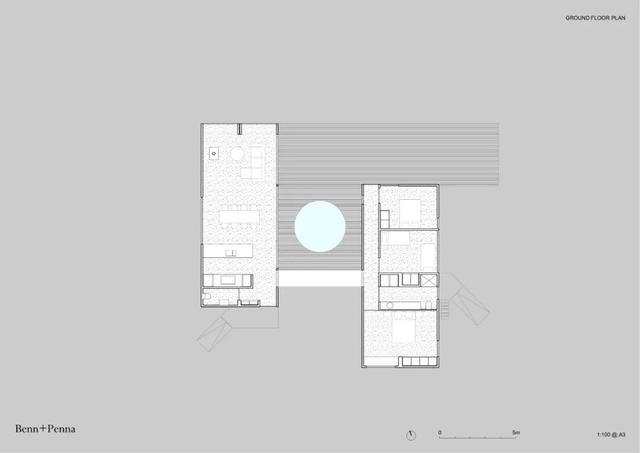

Ground Floor Plan

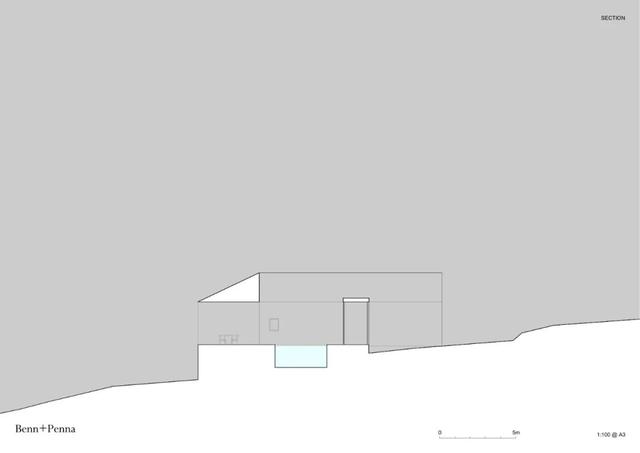

Section

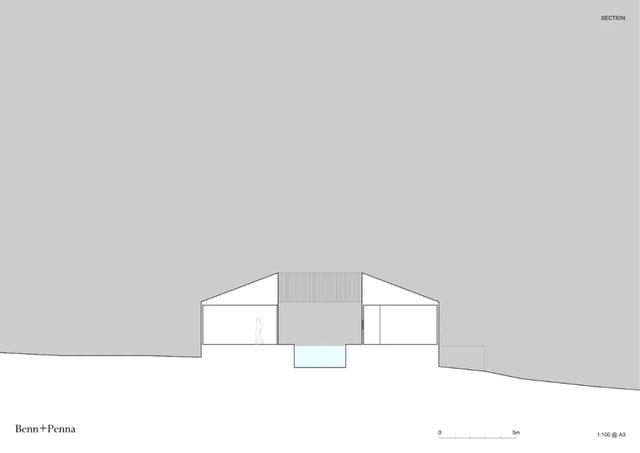

Section

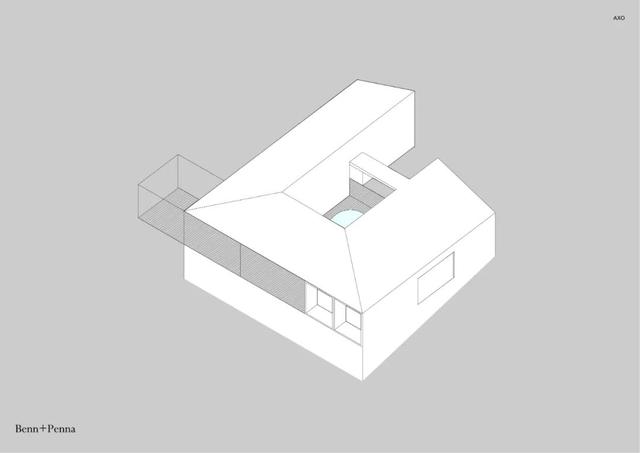

Axonometric View

项目信息

项目名称：Colo Crossings 房屋

位置：Colo河，新南威尔士州，澳大利亚

建筑师: Benn & Penna建筑事务所

设计团队: Andrew Benn, Sean Tran, Rachel Stratford

摄影师: Tom Ferguson

承包商: Underhill建筑公司、Mountain Gum建筑公司和Craig Miller公司

PROJECT DETAILS

Project name : Colo Crossings House

Location : Colo River, NSW, Australia

Architect : Benn & Penna Architecture

Project team : Andrew Benn, Sean Tran, Rachel Stratford

Photographer : Tom Ferguson

Builder : Underhill Constructions, Mountain Gum Constructions, and Craig Miller
